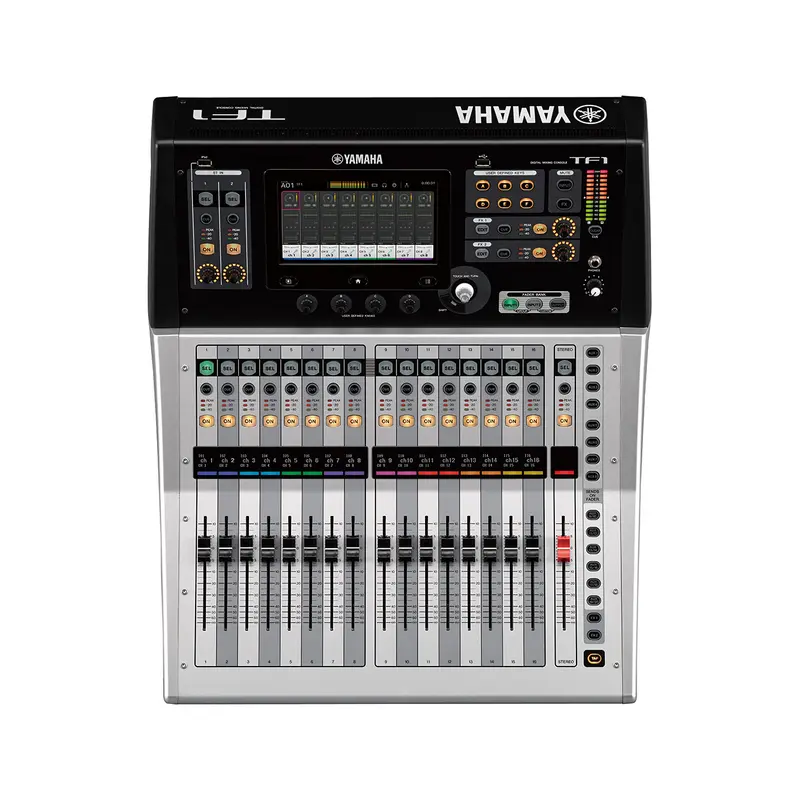

Yamaha TF1 16 Channel Compact Digital Mixer – Open Box, Mint

Intuitive and Compact – The Yamaha TF1 16 Channel Compact Digital Mixer

Compact, portable, and even rack mountable, the TF1 offers impressive capability and versatility for smaller systems.

Yamaha digital consoles have always been designed with input from leading engineers worldwide to ensure that the most efficient, intuitive operation is achieved. The highly regarded Selected Channel and Centralogic interfaces attest to the success of that approach. The Yamaha TF Digital Mixer series combines Yamaha know-how with new input from the field and the latest touch-screen technology to deliver an evolved experience in console operation. The Yamaha TF1 16 Channel Compact Digital Mixer has a smooth setup and operation, practical presets and scenes, refined design, and software applications that integrate seamlessly with the entire system: these elements comprise TouchFlow Operation, a new concept in console interfaces that offers unprecedented comfort and convenience in small consoles, for a wide range of users and applications.

• 17 motor faders (16 channels + 1 master)
• 40 input mixing channels (32 mono + 2 stereo + 2 return)
• 20 Aux buses (8 mono + 6 stereo) + Stereo + Sub
• 8 DCA groups with Roll-out
• 16 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
• 16 analog XLR outputs
• 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
• 1 expansion slot for NY64-D audio interface card

SPECIFICATIONS

Outline

• Fader Configuration: 16 + 1 (Master)
• Mixing Capacity
• Aux Buses: 20 (8 mono + 6 mono)
• Stereo Buses: 1
• Sub Buses: 1
• Input Channel Functions: 8 DCA Groups
• I/O
• Inputs: 16 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
• Outputs: 16 XLR
• Expansion Slots: 8 Effects + 10 GEQ
• USB: 34×34 USB Audio Interface, 2-track recording via USB Storage Device

General Specifications

• Sampling Frequency Rate: 48 kHz
• Signal Delay: Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
• Fader: 100 mm motorized, Resolution = 10-bit, +10 dB to 138 dB, dB all faders
• Total Harmonic Distortion: Less than 0.05% 20 Hz20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. (Measured with a 18 dB/octave filter@80 kHz)
• Frequency Response: +0.5, 1.5 dB 20 Hz20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
• Dynamic Range: 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.
• Hum and Noise Level
• Equivalent Input Noise: 128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
• Residual Output Noise: 85 dBu, ST master off (Measured with an A-Weight filter)
• Crosstalk: 100 dB (Measured with a 30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
• Power Requirements: 100240 V 50/60 Hz
• Power Consumption: 100 W
• Dimensions (W x H x D): 510 mm (20.1 in) x 225 mm (8.9 in) x 599 (23.6 in)
• Net Weight: 13.5 kg (29.8 lbs)
• Accessories: Quick Guide, Power Cord, NUENDO LIVE (DAW Software)
• Options: Rack-mount Kit RK5014, Expansion Card, Foot Switch (FC5)
• Others: Operating temperature range: 040 C, Storage temperature range: -2060 C

Manufacturer:Yamaha
Model:TF1
SKU:I362541-GA250827-3-WHXD
UPC: 086792992914
